Mechanics use Unified Diagnostic Services (UDS) to talk to cars and vehicles. It’s how they read fault codes, update firmware, and recalibrate sensors. I got familiar with the protocol while working on Telematics devices made by Proemion. We were doing updates od the devices, and I learned that manufacturers do not care about following the standard, but more about following their tools.

After learning UDS internals I built UDSLib to enforce safety by design and release process.

Source Code: github.com/w1ne/udslib

ISO-14229-1 Compliance

Getting the error codes right is hard. The standard has a strict Negative Response Code (NRC) Priority. If a request is wrong for two reasons (e.g., wrong length AND security locked), you must return the specific error code the standard demands.

UDSLib uses a table-driven dispatcher that follows the rules.

NRC	Meaning
0x7F	Service Not Supported
0x12	SubFunction Not Supported
0x13	Incorrect Message Length
0x33	Security Access Denied
0x22	Conditions Not Correct (The Safety Gate)

Transport Layer, Zephyr vs Bare Metal

UDS is implemented on top of ISO-TP (ISO 15765-2), which handles breaking large messages into CAN frames.

UDSLib uses a Spliced Transport Architecture:

• Native Mode: On Zephyr, it uses the kernel’s native ISO-TP sockets. Saves RAM and CPU.
• Fallback Mode: On Bare Metal, it uses its own static buffers. It also handles CAN-FD.

Tooling Ecosystem

You can’t fix what you can’t see. I built tools to help me debug it:

• Wireshark Dissector A LUA script that decodes traffic, showing which service logic is executing.

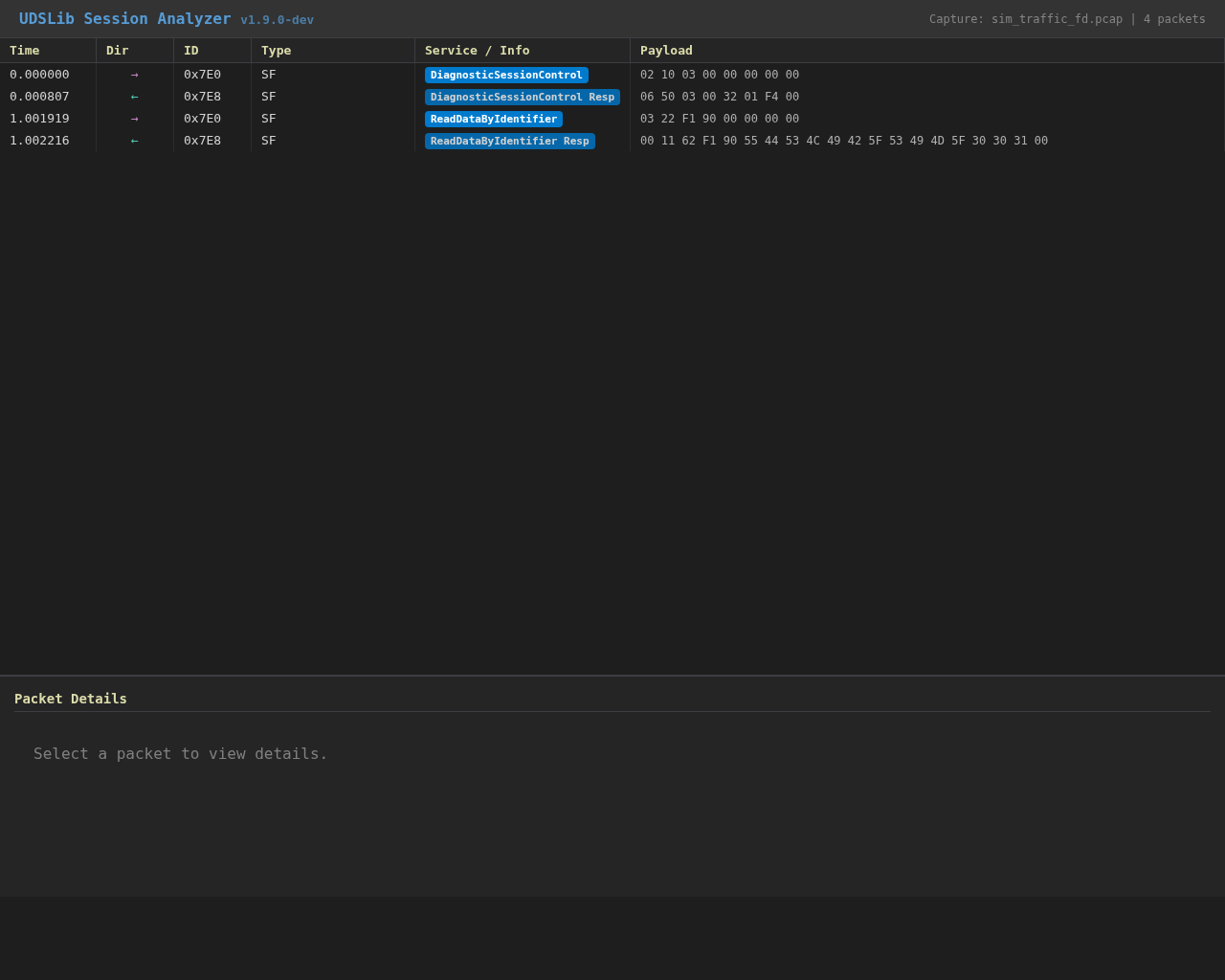

• HTML Dashboard A log analyzer that generates a visual timeline of the session. It highlights P2 timer violations and security changes.
• Python Bindings I wrapped the C library with ctypes, so I can fuzz-test the parser with thousands of malformed packets.

Safety in automotive firmware is about code quality, CI /CD, and architecture. And UDSLib enforces all of them.
